ITX9000RV - Product Description

The ITX9000RV is designed specifically for Recreational Vehicle/Motorcoach owners. It is a tough, high performance computer system suitable for RV road navigation, workstation, business operations, complex numerical analysis, home theatre and gaming. It is built for extreme environments and contains pre-loaded software to meet onboard needs for navigation, instrument and systems data display and control. The included navigation software will guide you through difficult routes regardless of vehicle size.

In addition, software is pre-loaded for the control and display of engine and vehicle operational data. This data can be accessed using the included OBD2 interface. Displayed data includes vehicle parameters such as engine rpm, mph, fuel flow, mpg, air temp, pressure, coolant temp, O2 sensor performance, cat performance and electrical systems data.

An advanced GPS receiver is included with the ITX9000RV to provide rapid and accurate position data anywhere in the world.



The ITX9000RV is shock resistant, corrosion resistant and water resistant. It utilizes one of Intel's most advanced CPU's and an Asus premium ITX motherboard.  8GB of RAM is provided with a total of 16GB optional.  A Samsung 250GB solid state drive (SSD) is standard with up to 1TB optional. Additional SSD's can be accommodated within the ITX9000RV for a maximum 4TB internal storage.

The ITX9000RV is a compact 245mm (9.66in.) W x 274.5mm (10.81in.) D x 68.5mm (2.70in.) H and utilizes a thermal solution that transfers CPU and internal subsystem heat to its extruded aluminum case.   The power supply accepts inputs from both 12vdc and 24vdc onboard power systems and safely operates during hard engine starts.  It will continue to operate with input voltages as low as 6VDC.

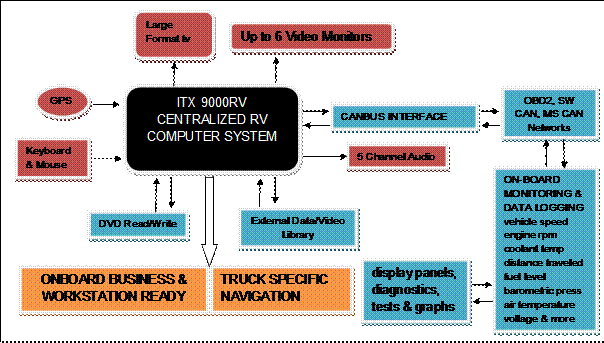

The ITX9000RV is totally silent and contains no moving parts.  It is capable of centralizing and controlling most onboard navigation and instrumentation functions and can serve as a primary or an important secondary source of navigation and instrument display.  Capabilities include the integration of smart devices such as Tablets into a network to remotely display navigation and instrument data anywhere on board.

CLICK ON THE ICON BELOW TO VIEW AND DOWNLOAD THE ITX9000RV QUICK START GUIDE
